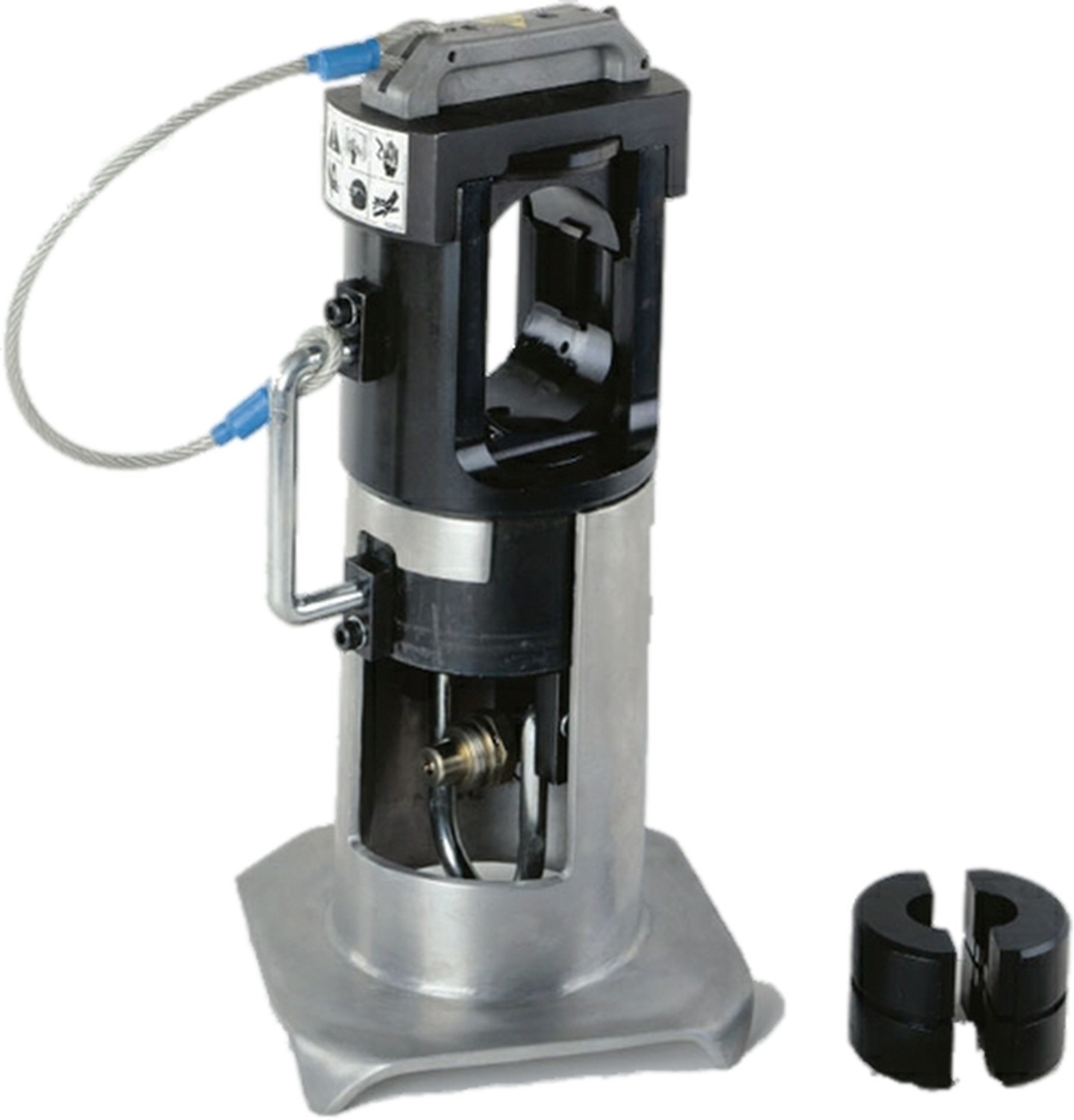

RK6040 Single Acting 60-Ton Crimper

SKU RK6040

Quantity:

Product Details

Brand: Greenlee

● Ideal tool for use in substation and transmission construction

● Accepts Burndy L dies and Alcoa 6000 series crimping dies

● After completing a connection, the top of the head easily swivels 90° and can be lifted from the tool to remove the connector

● Removing the tool from the stand exposes a lifting eye for when the tool must be used above ground level

● Requires 10,000 psi single-acting hydraulic power source

● Includes steel carrying case with storage space for dies

● Crimping force: 120,000 lbs @ 10,000 psi

● Capacity:

 Copper stranded code cable: 300-2000 kcmil

 Aluminum stranded code cable: 250-2000 kcmil

 Copper tension sleeves: 1/0 AWG-1000 kcmil

 Aluminum tension sleeves: 1/0 AWG-2300 kcmil

 ACSR Tension Sleeves: 1/0 AWG-2156 kcmil

 Copper aerial connectors: 4/0 AWG-2500 kcmil

 Aluminum aerial connectors: 3/0 AWG-2500 kcmil

● Equipped with 3/8” screw type hydraulic couplers
